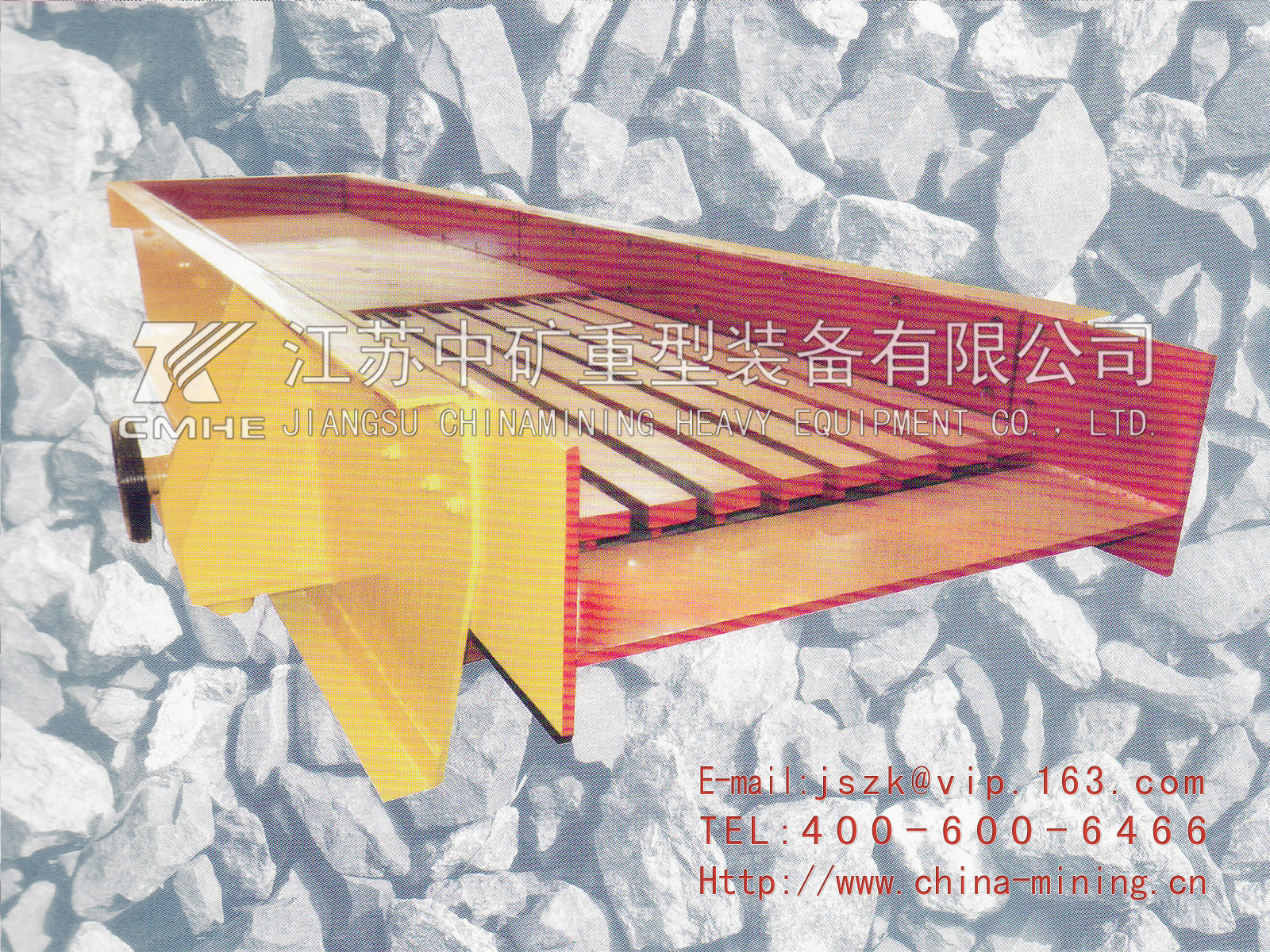

ZSW振動喂料機

丁寶勤 13906276368(技術)

電話：0513-88400999 傳真：0513-88400998 郵箱：jszk@vip.163.com

ZSW振動喂料機可在生產流程中把塊狀、顆粒狀物料從貯料倉中均勻、定時、連續(xù)地送到受料裝置中去，在砂石生產線中，可為破碎機械連續(xù)均勻地喂料，并對物料進行粗篩分，廣泛用于冶金、煤礦、選礦、建材、化工、磨料等行業(yè)的破碎、篩分聯(lián)合設備中。

ZSW Vibrating feeder is the latest type of super short linear vibrating feeder,designed specifically for feeding large lump of materials evenly before the primary crushers at crushing&screening station.This series is various in modes.solid in construction, impact-proof and reliable in operation. It can not only assure constant and even feeding.but also can screen the feeding material.which can make the system more economical and rational.lt is an indispensable equipment in the crushing&screening production line.

產品特點 Product features

■超矮機型

■均勻輸送大塊物料

■喂料同時進行篩分

The latest super short liner vibrating feeder

Designed specifically for feeding large lump of materials

It can screen the materials efficiently under the condition of guaranteeing continuous and uniform feeding.

技術參數表| Technical Date

型號	料槽尺寸 (mm × mm)	進料粒度上限(mm)	處理能力 (t/h)	偏心軸轉速 (r/min)	電機功率 (kw)	重量 (不包括電機) (t)	外形尺寸 (mm)
GZD 300×90	3000×900	450	40-100		2×2.2	2.64	3050×1430×1550
GZD 300×100	3700×1000	500	100-150		2×3.7	3.69	4250×1874×1130
GZD 430×120	4300×1200	650	200-400		2×5.5	4.2	4955×2206×1120
ZSW-380×96	3800×960	500	100-160	500-714	11	4.2	3882×1684×1340
ZSW-490×110	4900×1100	630	120-280	500-800	15	5.5	4957×2400×2150
ZSW-590×110	5900×1100	630	200-350	750	22	6.1	6000×2500×2150
ZSW-600×130	6000×1300	750	400-560	500-800	30	7.8	6082×2580×2083
ZSW-600×150	6000×1500	800	460-575	500-800	30	8.7	6086×2662×2186
ZSW-600×180	6000×1800	800	600-800	500-800	37	11.8	6310×3262×2230
