生料分配器
丁寶勤 13906276368(技術)
電話：0513-88400999 傳真：0513-88400998 郵箱：jszk@vip.163.com
生料分配器是水泥工業氣動化裝置，主要用在分配干燥粉狀物料，它適用于輸送設備的中間分料及庫頂物料分配?？筛鶕?jù)工藝要求生產二嘴、六嘴、八嘴，出料嘴斜度可按工藝在6°至 14°范圍內選擇。適用于大、中、小型水泥廠分配水泥、生料之用。
Raw material distributor is a pneumatic device in cement industry. Mainly apply in distributing dry and powder material and suit to convey middle material and top silo material. Manufacture 2 spouts, 6 spouts and 8 spouts according to workmanship request. The slope of outlet is selected from 6 degree to 14 degree according to workmanship. It is widely used in small, middle and big cement factory to distribute cement and raw material.
技術參數表
型號(mml Type(mm) | 生料通過能力(t/hl Raw material capacity (t/h ) | 風壓(mmHzO} Wind pressure (mmH20) | 風量(m3/min) Volume(m3/min) | |
Φ800 | 6嘴(6 spouts) | <120 | 700 | 2 |
8嘴(8 spouts) | <140 | 2.5 | ||
Φ1000 | 6嘴(6 spouts) | 75 ~ 130 | 700 | 3 |
8嘴(8 spouts) | 90?150 | 4 | ||
Φ1200 | 6嘴(6 spouts) | 130-150 | 700 | 4.5 |
8嘴(8 spouts) | 150-180 | 5 | ||
Φ1600 | 6嘴(6 spouts) | >150 | 700 | 7 |
8嘴(8 spouts) | >180 | 8 | ||

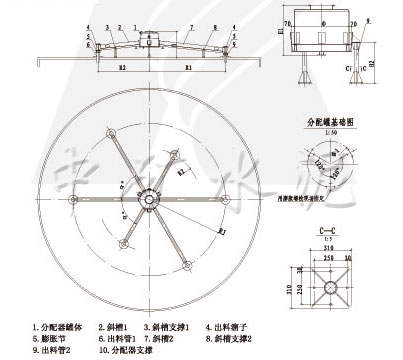

分配器外形圖
